$4.00

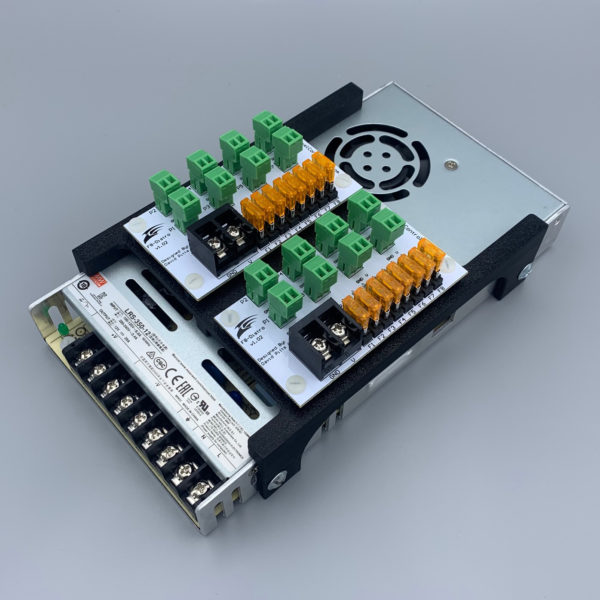

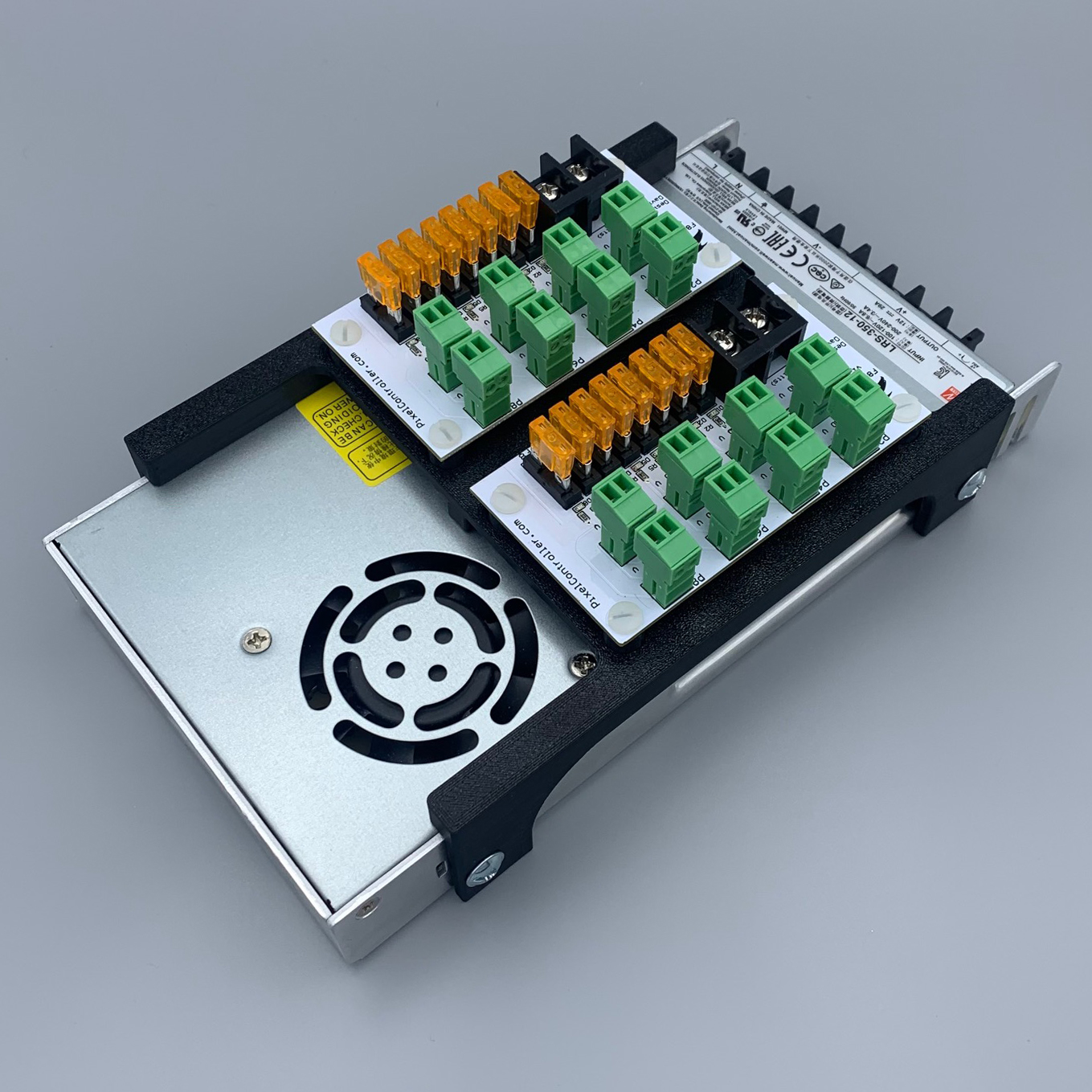

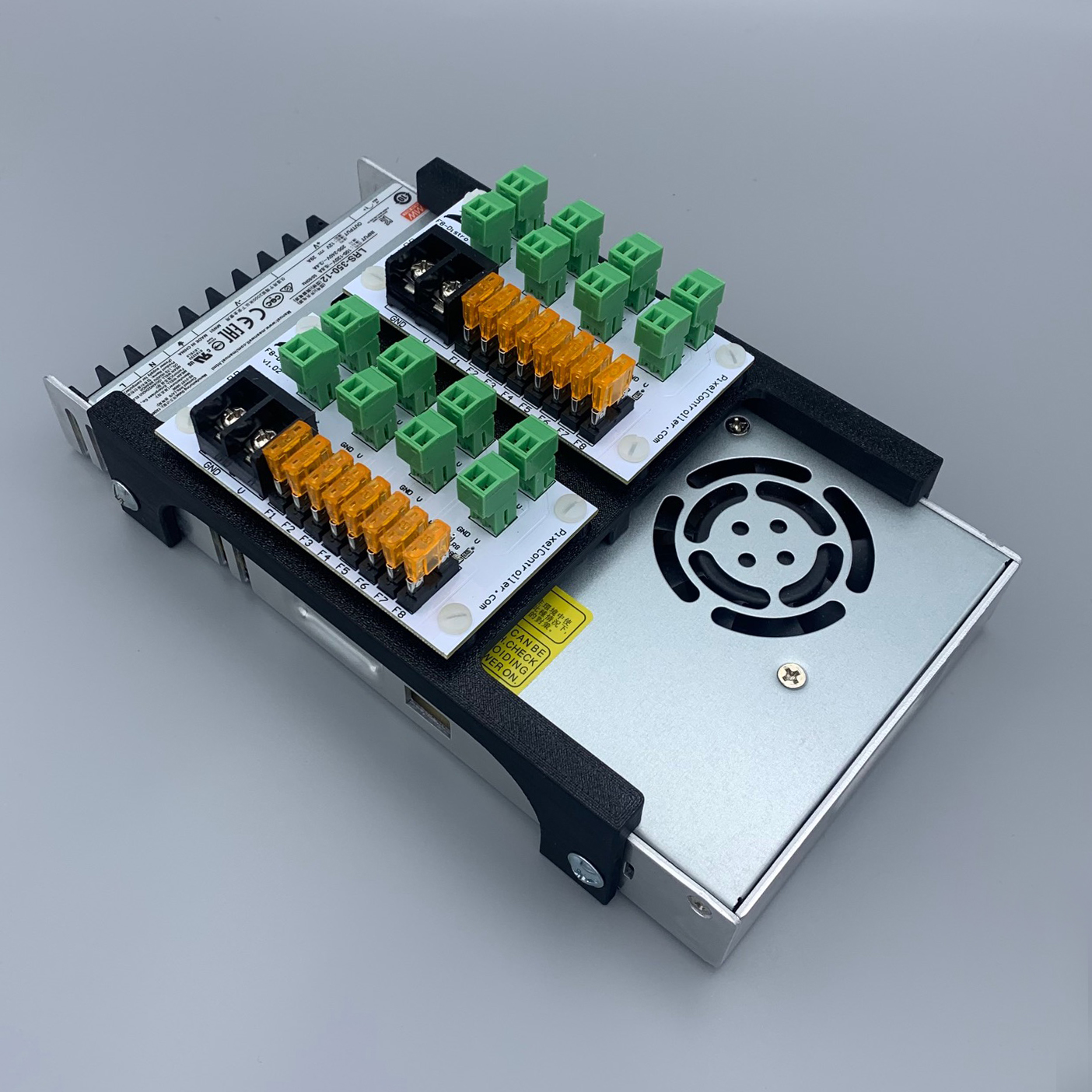

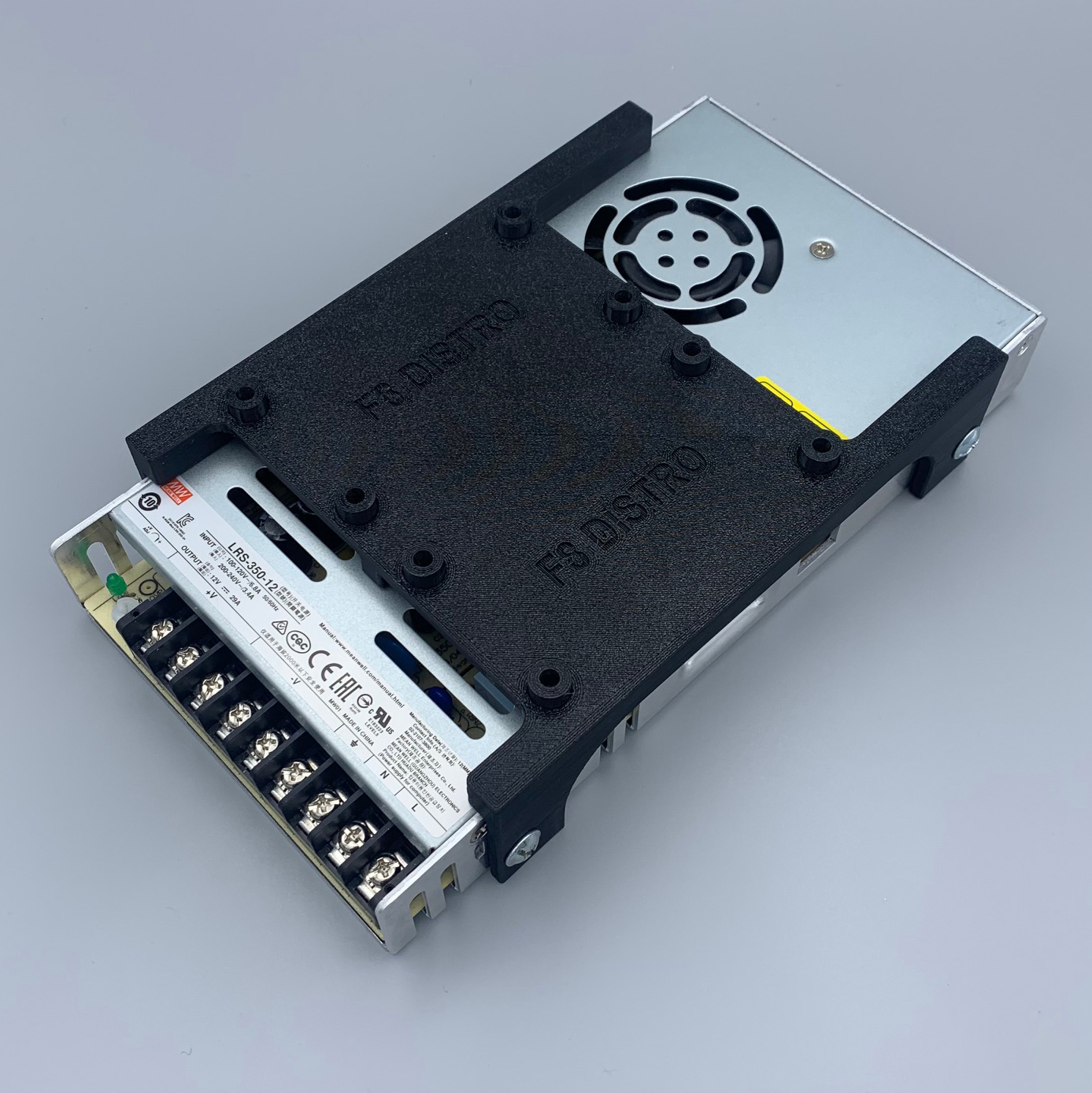

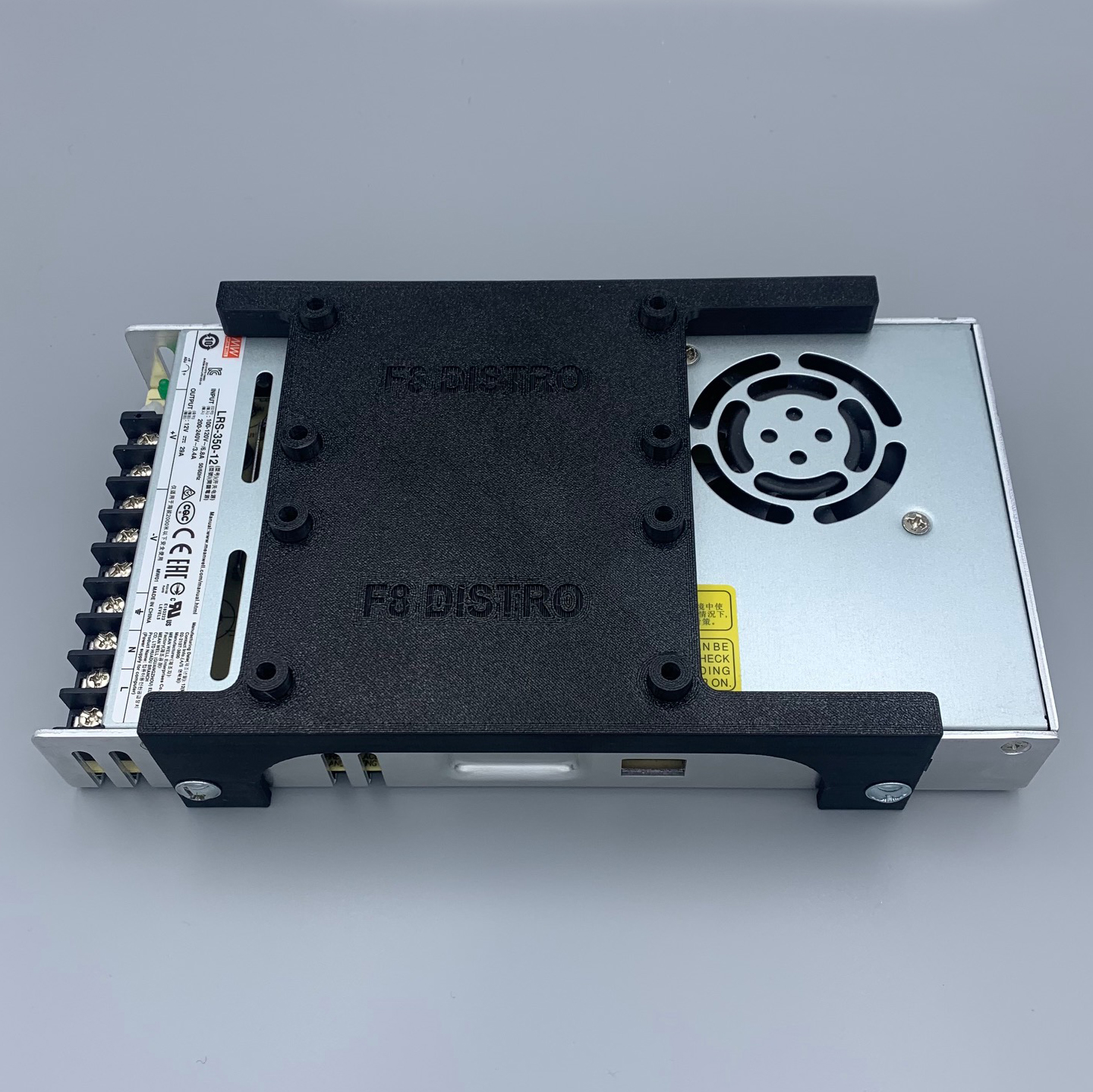

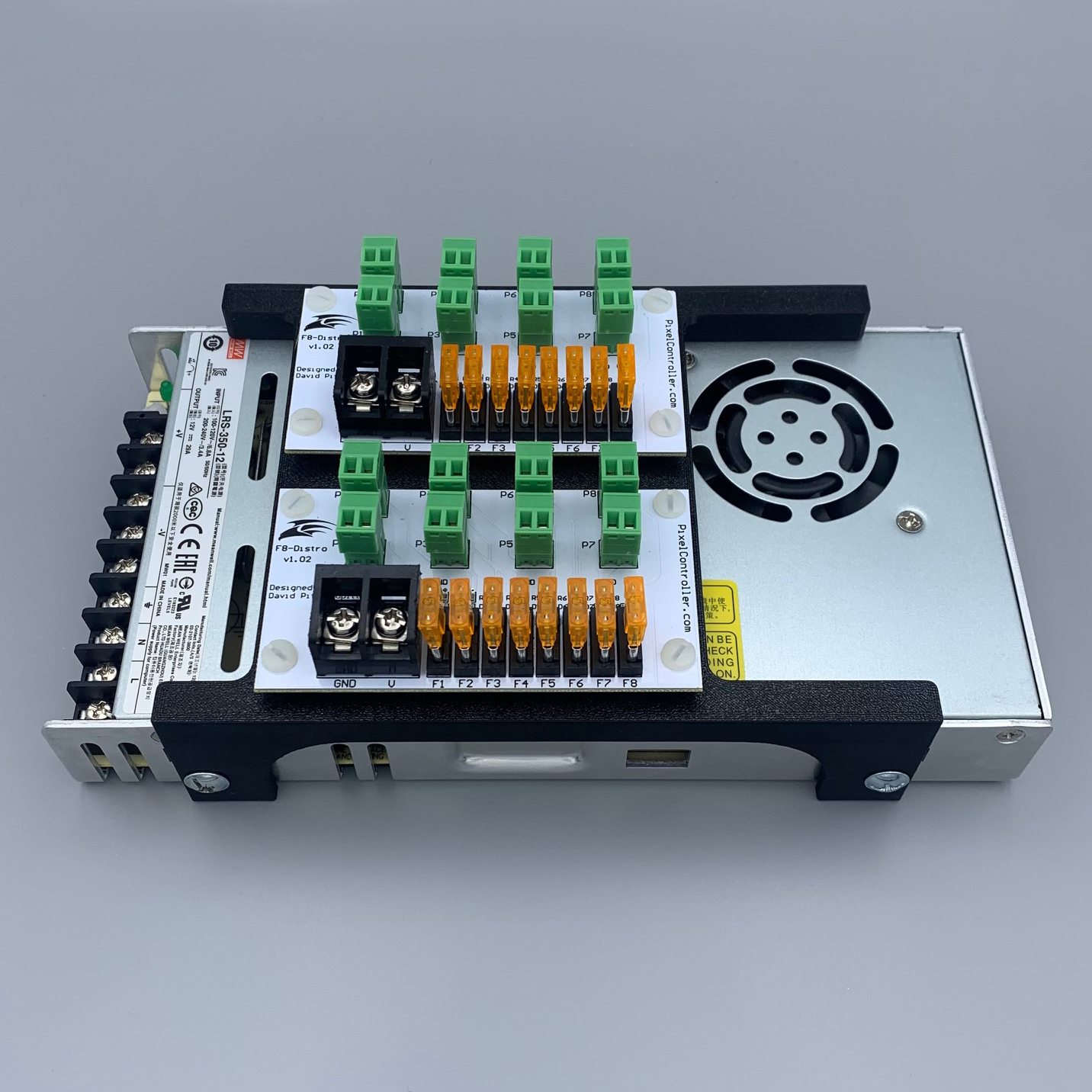

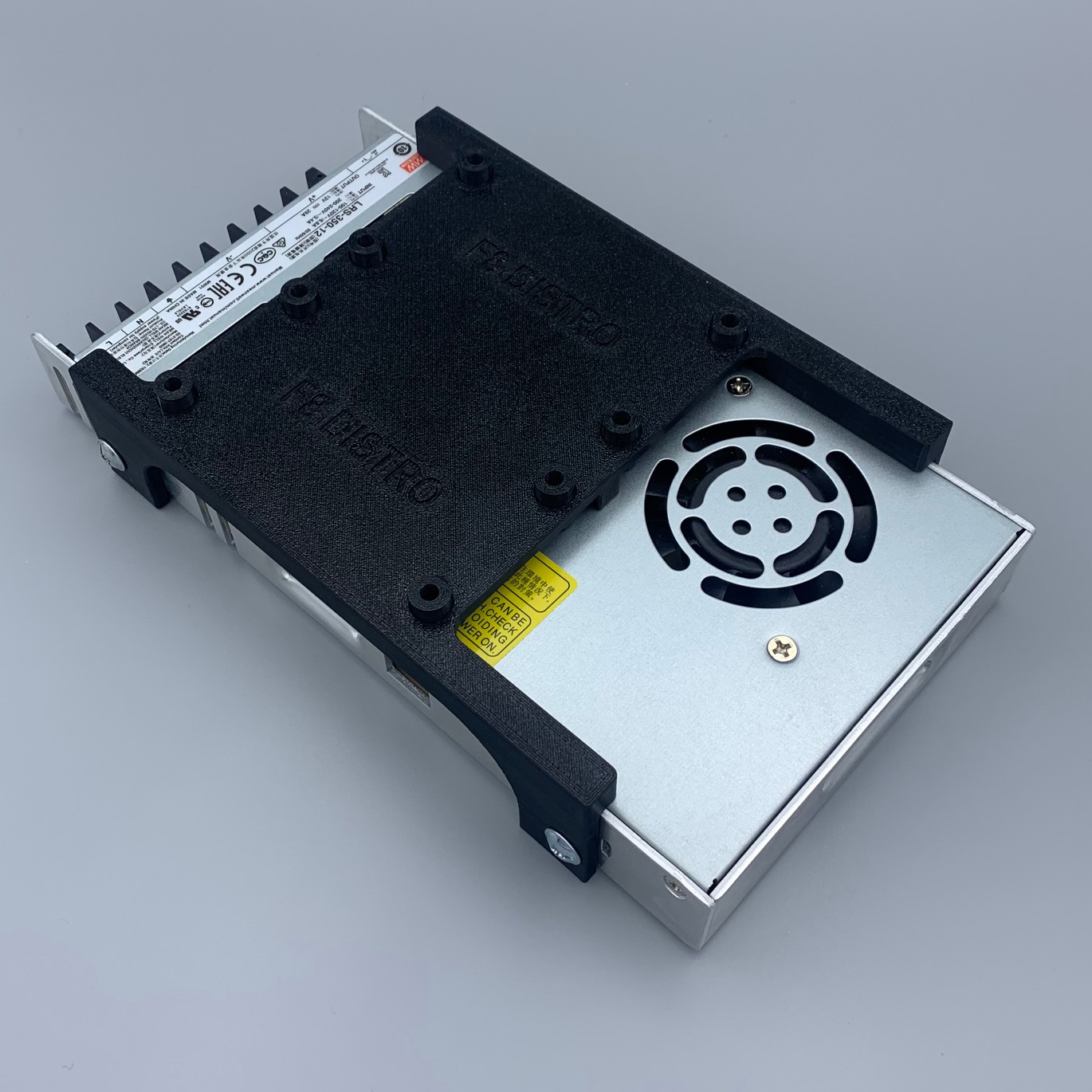

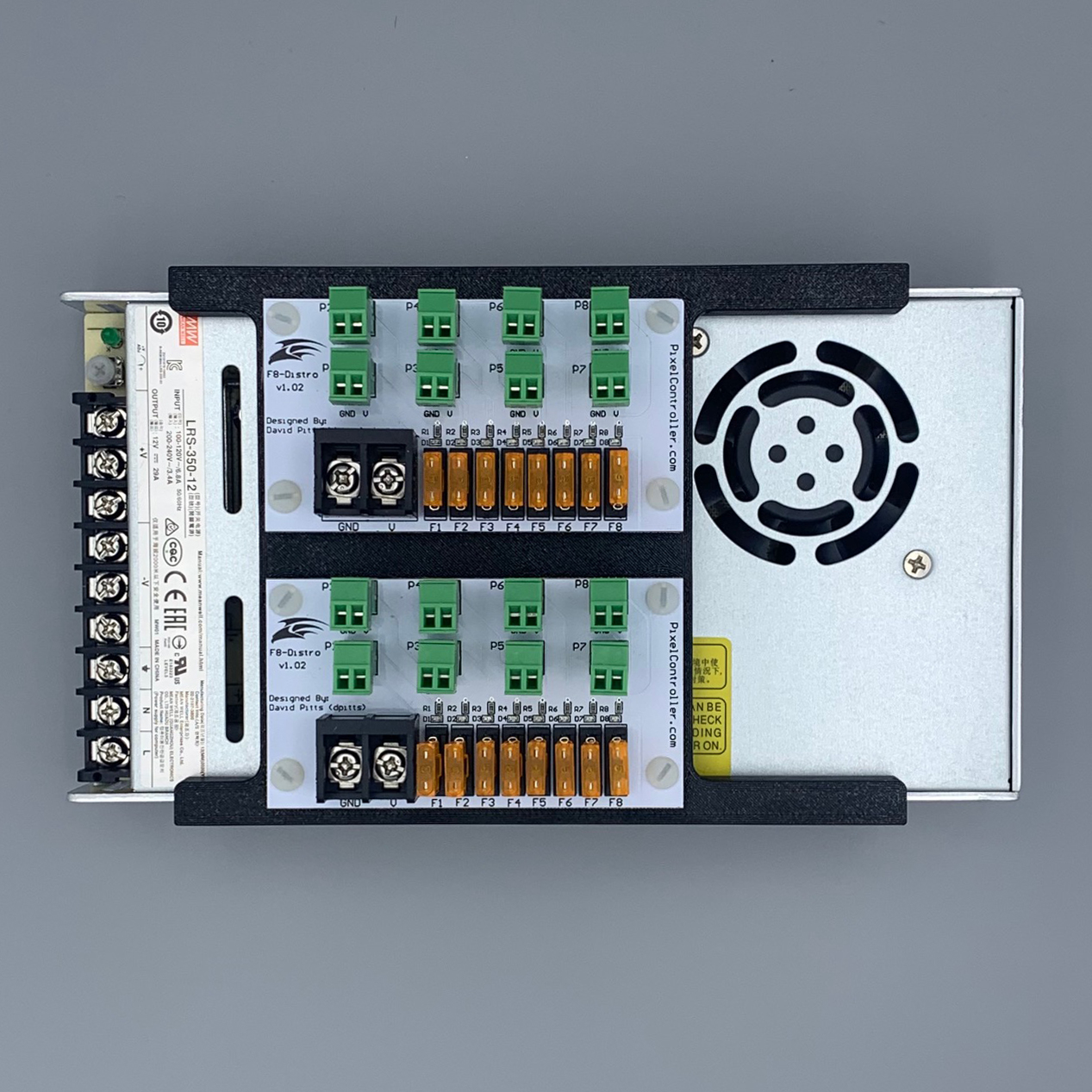

These are the STL files for making the 3D printed mounting bracket for dual Falcon F8 Distro boards v1.02 or newer, including the latest revision featuring e-fuses. The mount attaches to a Meanwell LRS-350 or LRS-600 power supply and the LRS-350 version also features dimples that can be drilled out to accommodate a variety of generic 350W power supplies, offering additional flexibility. The mount features our press fit standoffs which lock into place and greatly simplify installation as you no longer have loose standoffs that can shift when positioning the board. They need to be printed separately from the primary mount and then aligned over the openings on the deck of the mount and simply tapped gently into place until fully seated and secure using a small hammer or mallet. The controller mounting holes are self-threading and sized for 6-32 x 1/2″ screws and the mount attaches to the side of Meanwell LRS power supplies using four M4 x 8mm screws. Compatible with our Ammo Box Mounting System v3.
Note: This is a digital purchase for STL files and not a physical product.
Note tolerances on the press fit standoffs are extremely sensitive and a printer that is slightly over extruding or under extruding may produce a fit that is too tight or too loose. If the standoff fit is not satisfactory most slicers include dimensional compensation controls that can be applied to the standoff parts to correct for small variations and achieve the proper press fit.
